Handheld Digital Storage Oscilloscopes UTD2062CM Dual analog channels width range 1mV/div~20V/div 60MHz 1GS/s

FOB Reference Price:Get Latest Price
$369.00 - $599.00 / Piece | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
UNI-T
Model Number:
UTD2062CM
Channels:
2
Bandwidth:
60MHz
Sample Rate:
1GS/s
Rise Time:
≤5.8ns
Memory Depth:
16Mpts
Interface:
USB Device, USB Host, Pass/Fail
Supply Ability
Supply Ability:
500 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Export carton
Port
Shenzhen


Handheld Digital Storage Oscilloscopes UTD2062CM  60MHz 1GS/s  16Mpts Memory Depth USB Device USB Host Pass/Fail  Interface





Detailed

1,Dual analog channels width range 1mV/div~20V/div;
2,7 inches widescreen LCD displays;
3,The new interface style;
4,Supports plug-and-play USB storage device. Communication with and remote control of computer through the USB device;
5,USB drive system software upgrade;
6,Storage of waveforms setups and interfaces waveforms and setups reproduction;
7,Automatic measurement of 32 waveform parameters;
8,Unique waveform recording and replay function;
9,Multilingual menu displays.





contrast





SpecificationUTD2062CMUTD2102CMUTD2202CM
Channels222
Bandwidth60MHz100MHz200MHz
Sample Rate1GS/s
Rise Time≤5.8ns≤3.5ns≤1.8ns
Memory Depth16Mpts
Waveform Acquisition Rate  ≥150,000wfms/s
Vertical Sensitivity2mV/div~10V/div
Timebase Range2ns/div~50s/div
StorageSetup, Wave, Bitmap, CSV
Trigger ModesEdge, Pluse, Video, Slope, Alternate
InterfaceUSB Device, USB Host, Pass/Fail
General Characteristic
Power100-240VAC, 45-440Hz
Display7 Inches 64K Color TFT  LCD,  800×480
Product ColorWhite and Gray
Product Net Weight2.9 Kg
Product Size(W×H×D)330mm × 155mm × 130mm
Standard AccessoriesProbe×2(1×,10× switchable),Power Cord,USB Cable,PC Software CD
Standard Individual PackingGift Box, English Manual
Standard Quantity Per Carton2 PCs
Standard Carton Measurement(L×W×D)450mm × 420mm × 280mm
Standard Carton Cross Weight10 Kg
Optional Accessories*
LAN Port, LA Module





Fitting

Probe×2 (1×,10× switchable),
Power Cord,
USB Cable,
PC Software CD,
LA Module  (UT-M09)*

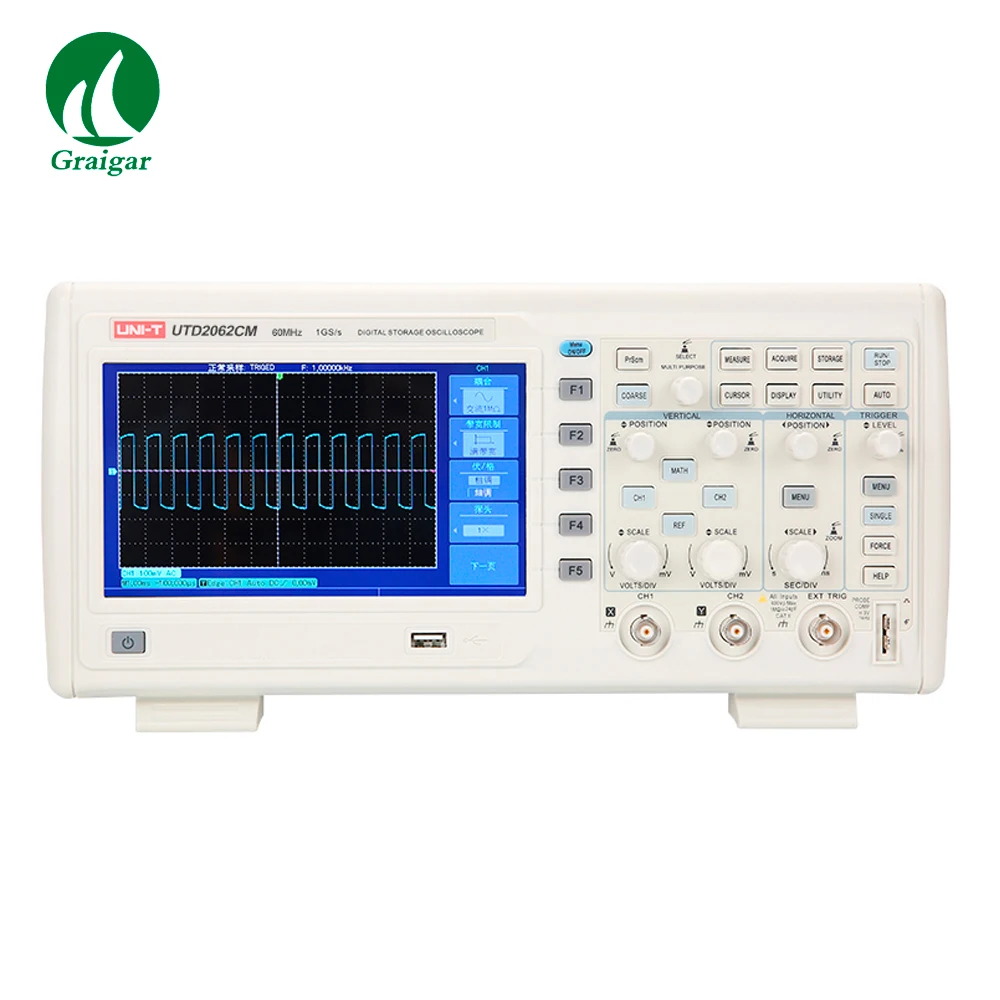

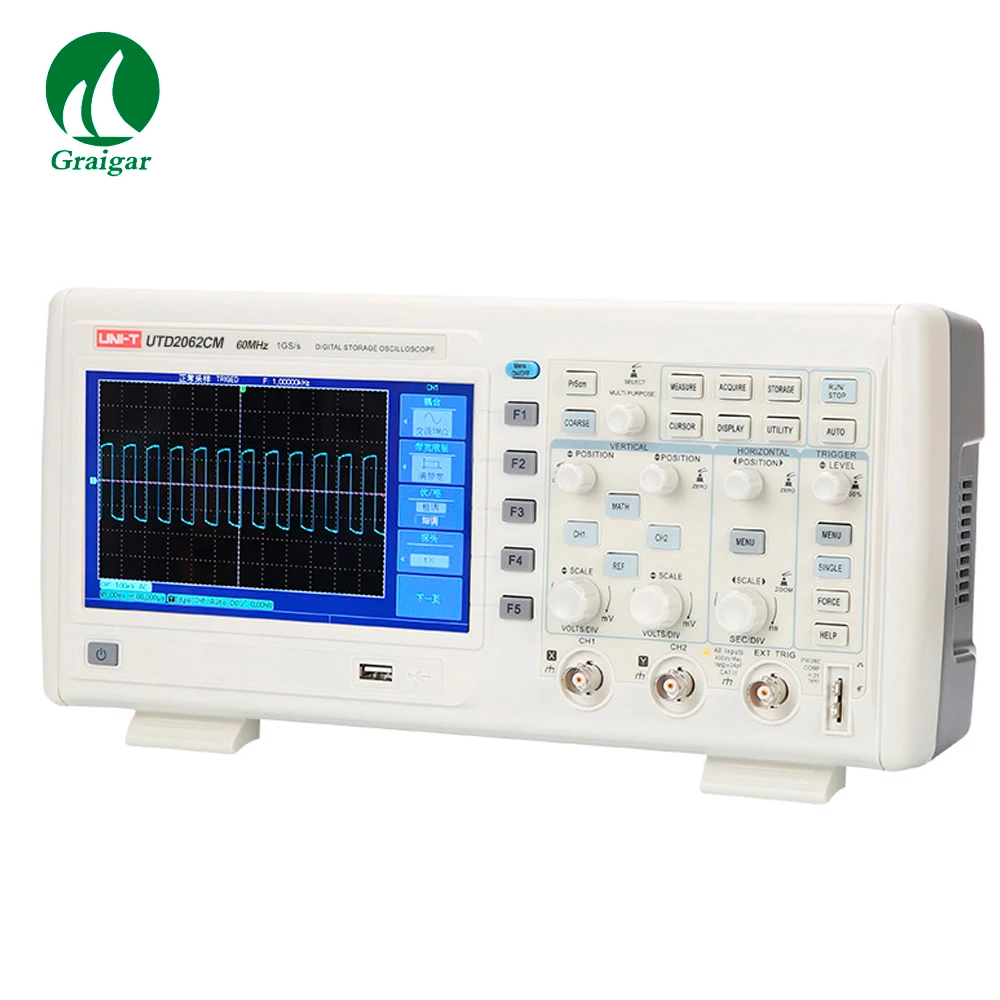

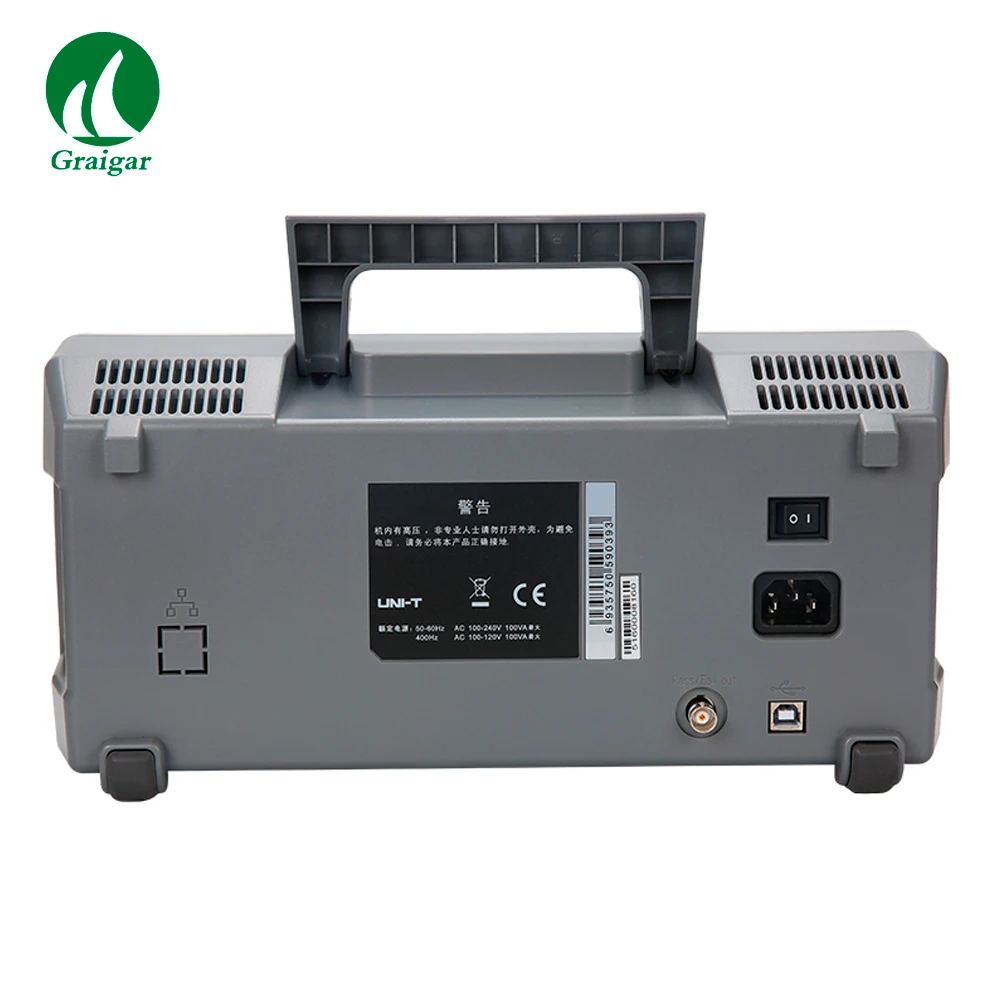

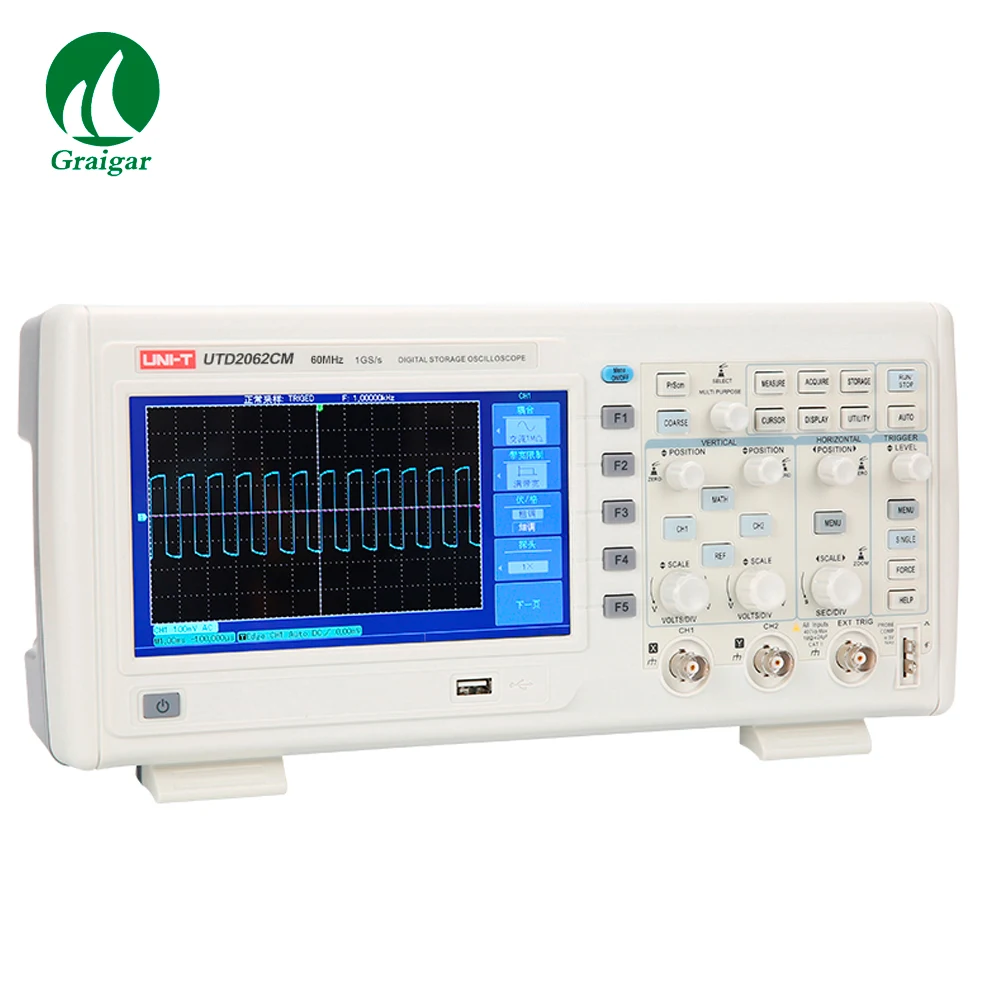

UTD2062CM  (1).jpgUTD2062CM  (2).jpgUTD2062CM  (3).jpgUTD2062CM  (4).jpgUTD2062CM  (5).jpg
