Smart Sensor AR932 Digital Film / Coating Thickness Gauge Measurement Range 0~1500um

FOB Reference Price:Get Latest Price
$105.00 - $125.00 / Piece | 1 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Lead Time:
Quantity(Pieces) 1 - 2 >2
Est. Time(days) 3 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Taiwan, China
Brand Name:
Smart Sensor
Model Number:
AR932
Measuring range:
0~1500μm
Supply Ability
Supply Ability:
500 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
EXPORT CARTON
Port
Shenzhen
Lead Time :
Quantity(Pieces) 1 - 2 >2
Est. Time(days) 3 To be negotiated






Smart Sensor AR932 Digital Film / Coating Thickness Gauge Measurement Range 0~1500um





FEATURES

Coating thickness gauge is used to measure the coating wall of metals and other material. It uses digital pocess technology, accurate, and light.



SPECIFICATIONS



Measuring range

0~1500μm

Measuring Principle

Magnetic Induction & Eddy current

Accuracy

±(1.8%um±2um)(0-500um) ;

±(2.2%um±2um) (500-1500um)

Resolution

0.1μm / 1μm

Backlight Display

Battery Indication

Zero / Two Poin / Basic correction

√

Alarm Buzzer

√

Single / Continuous / Standard

Deviation Measurement

√

Data Storage & Recall

√

Data Storage

20 groups

Max & Min Measuring

√

AVG & DFR Measuring

Metric / Imperial Switchable

√

Data Analysis

√

Operating Condition

0C~50C(without strong magnetic)



PACKING INFORMATION



Power

2*1.5V AAA battery(Not Included)

Product Net Weight

75g

Product Size

119*50*30mm

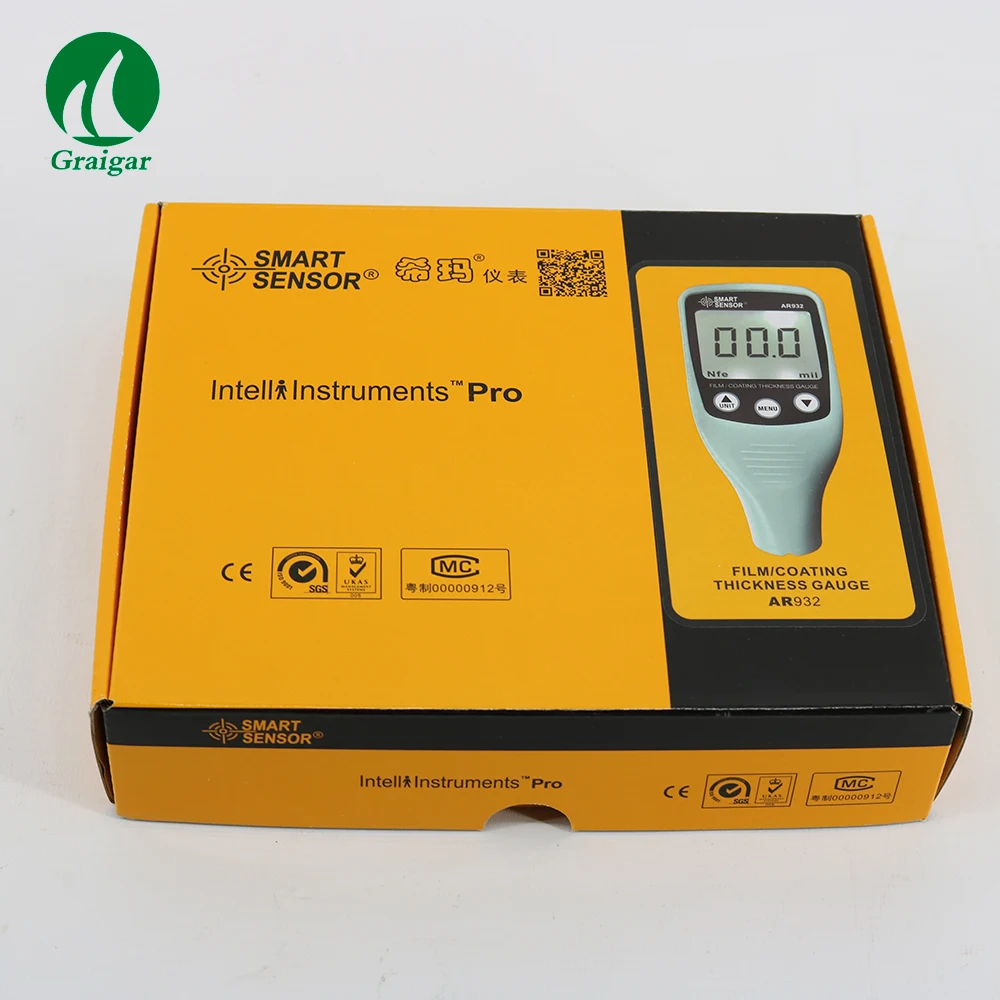

Packing

Gift  Box

Standard Quantity Per Carton

40

Standard Carton Size

52.5*40*49cm

Standard Carton Gross Weight

20KG

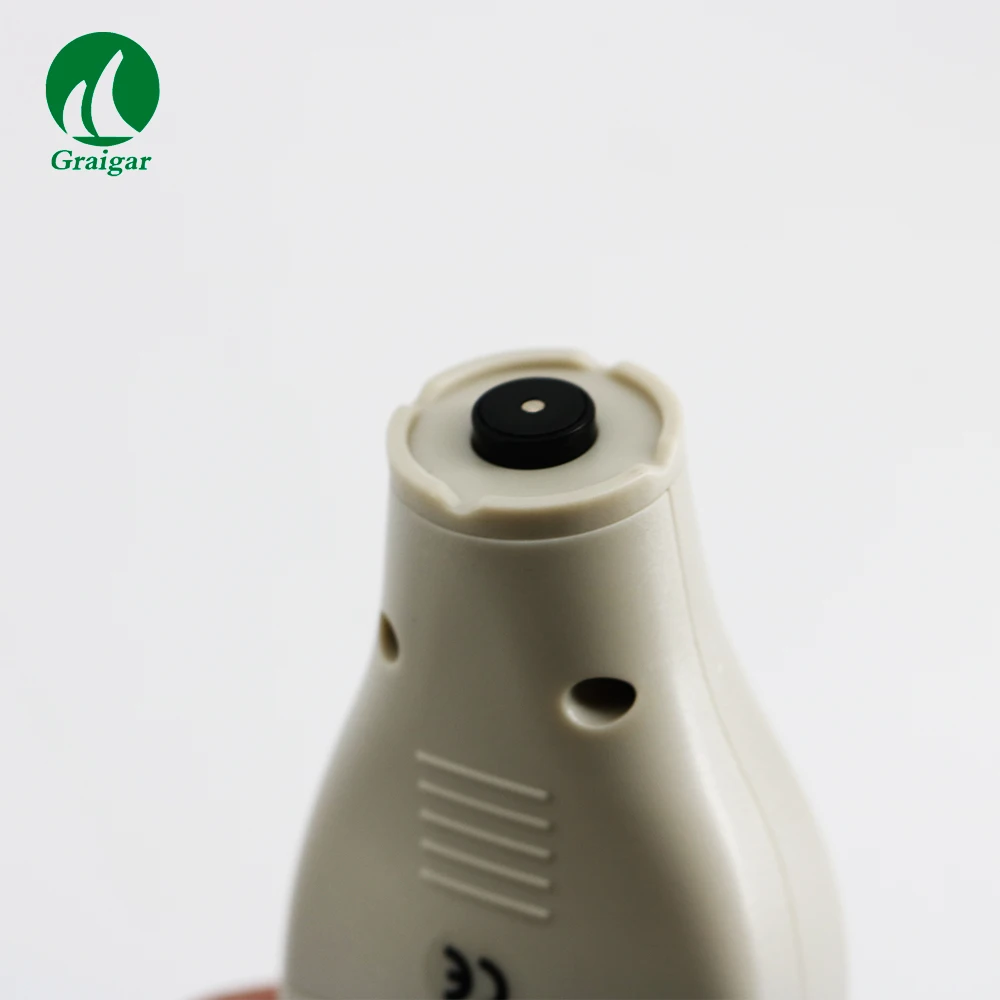

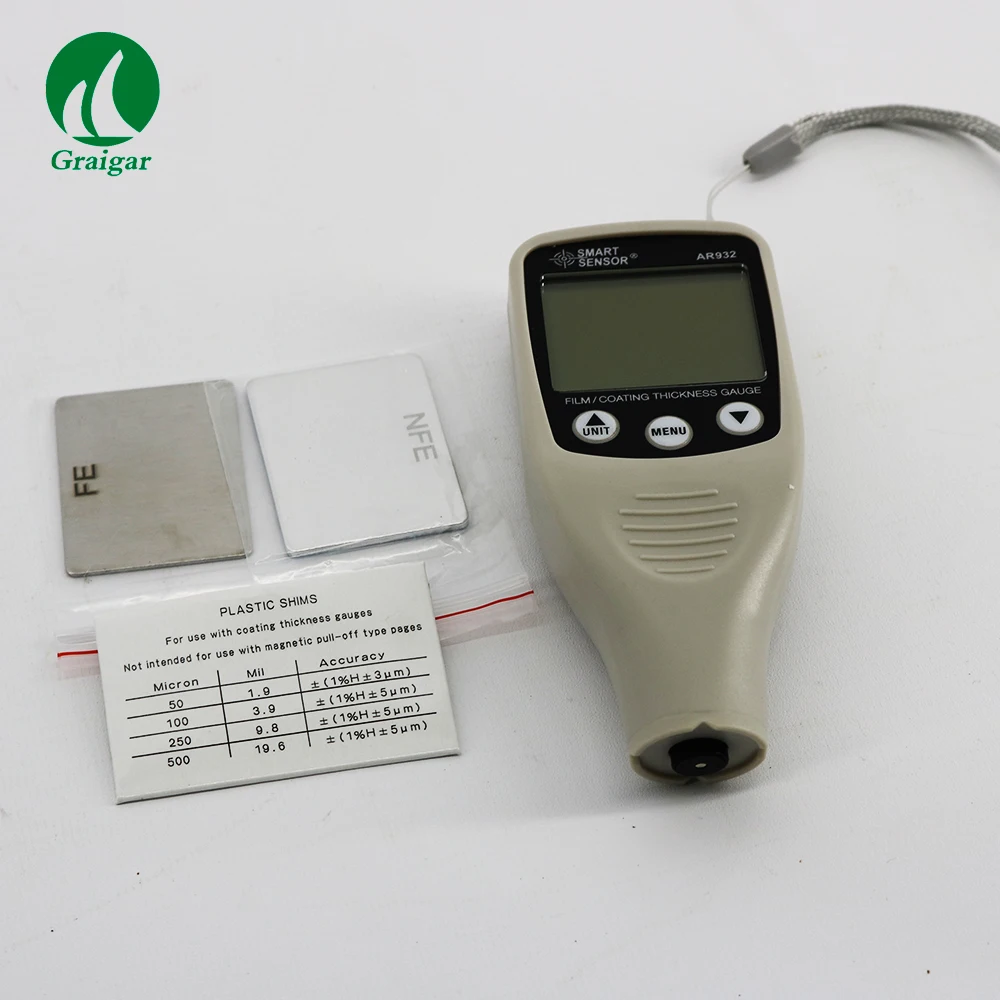

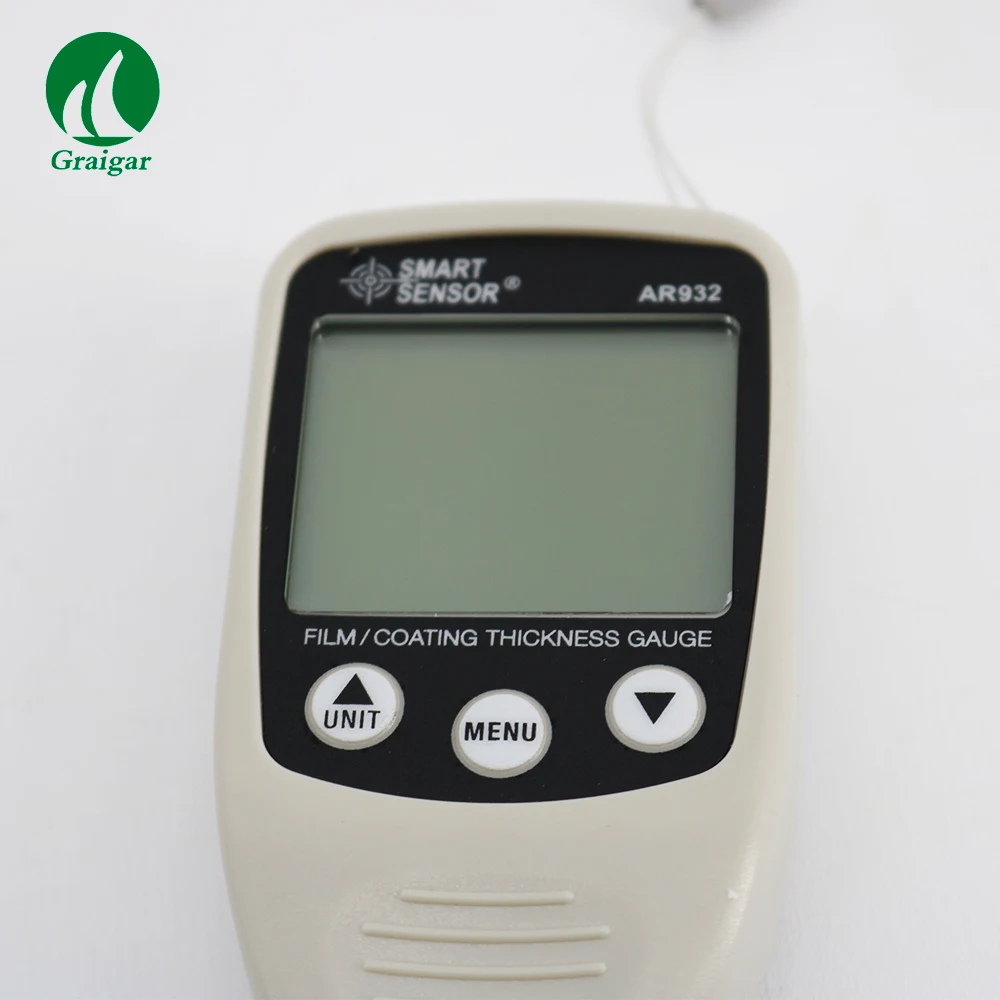

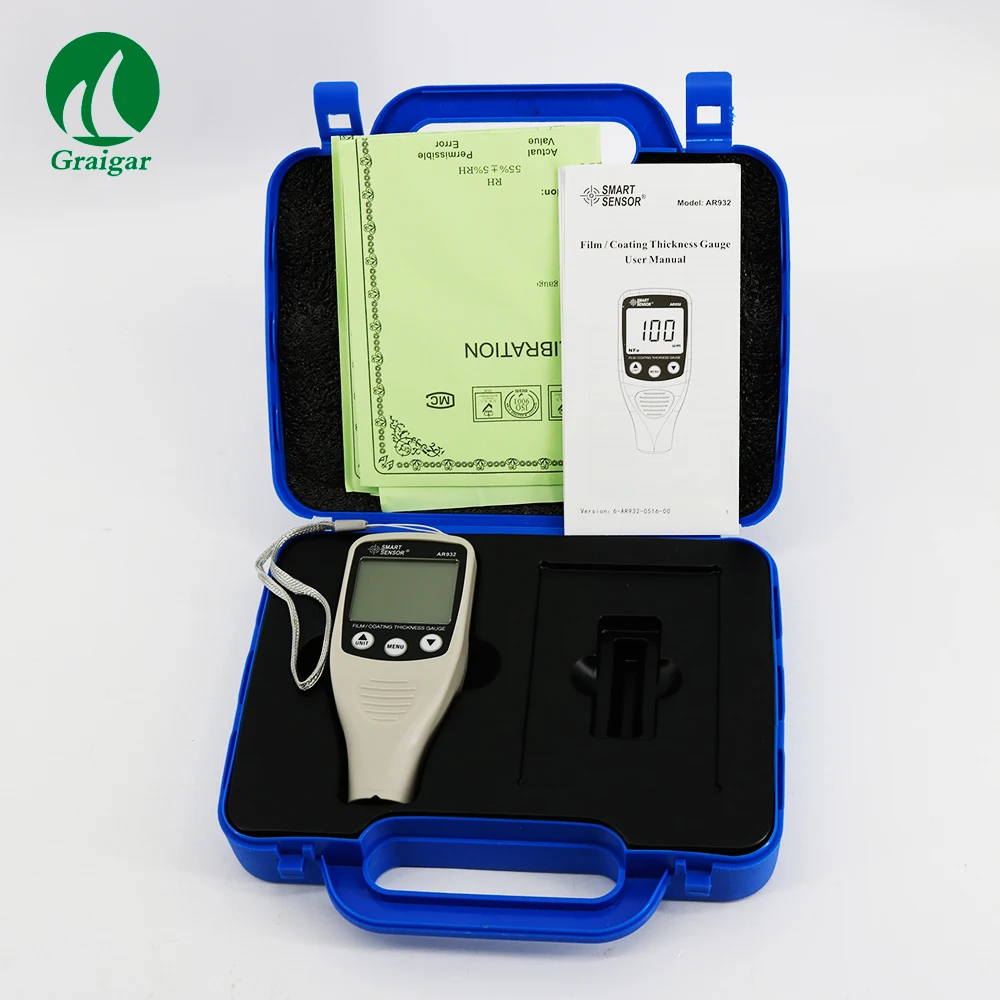

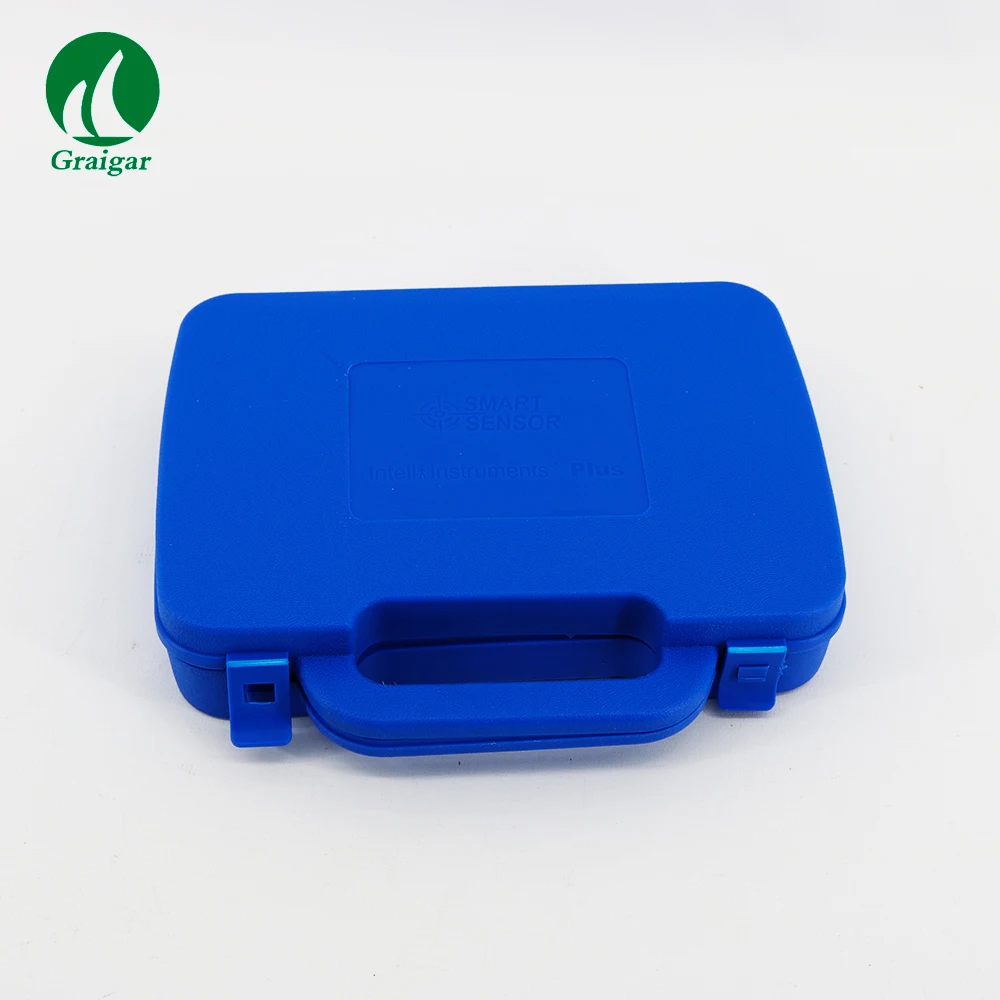

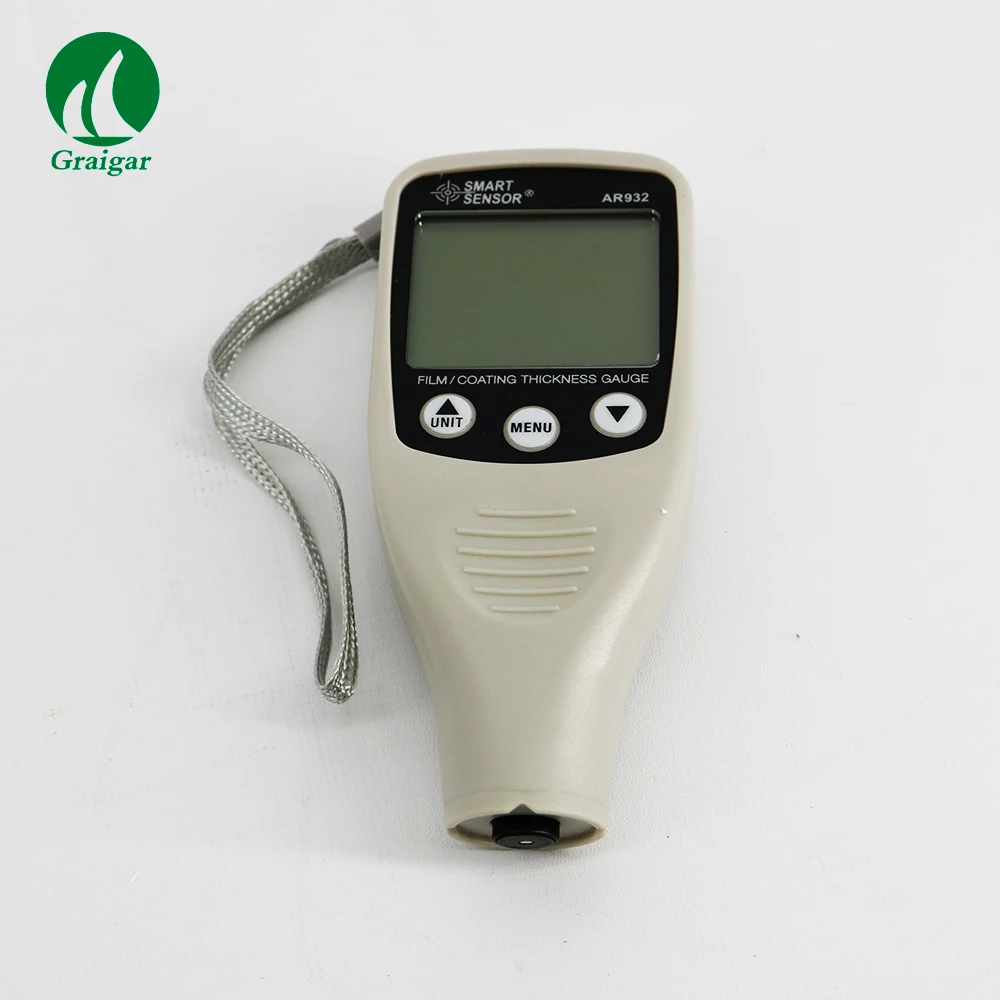

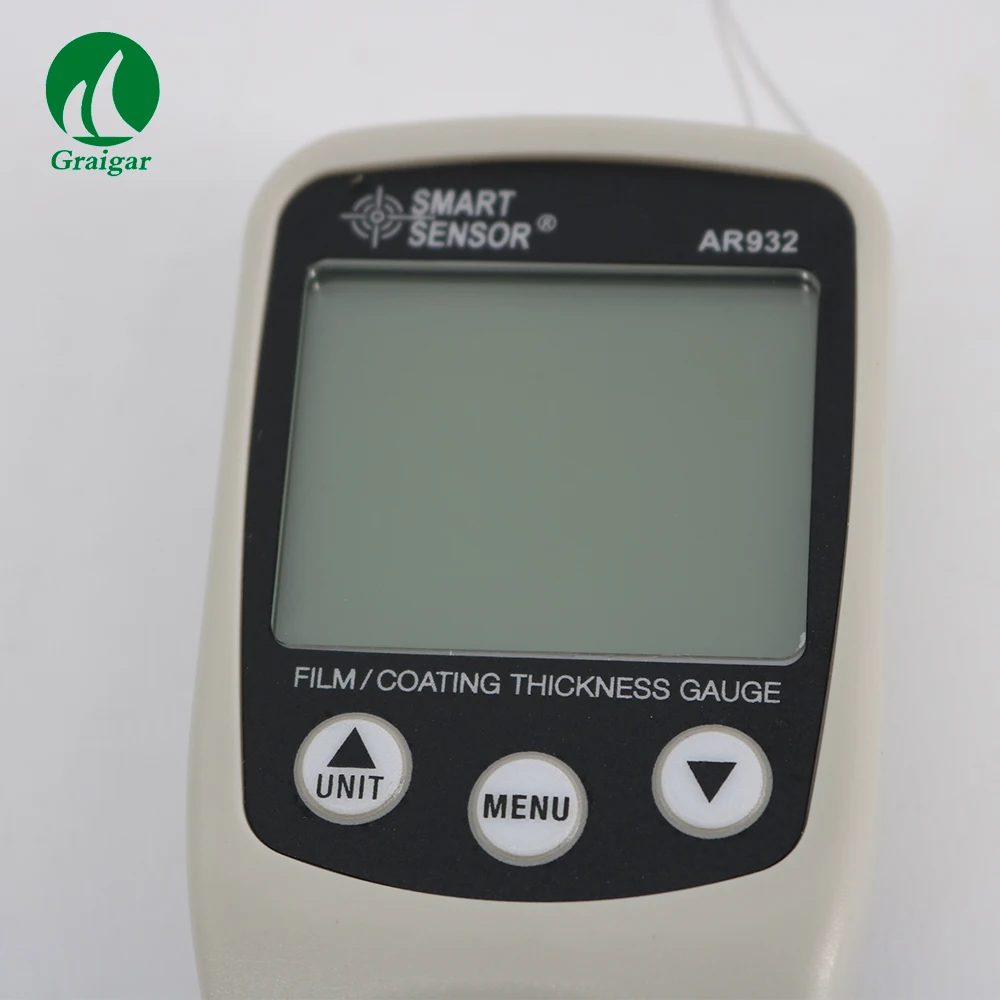

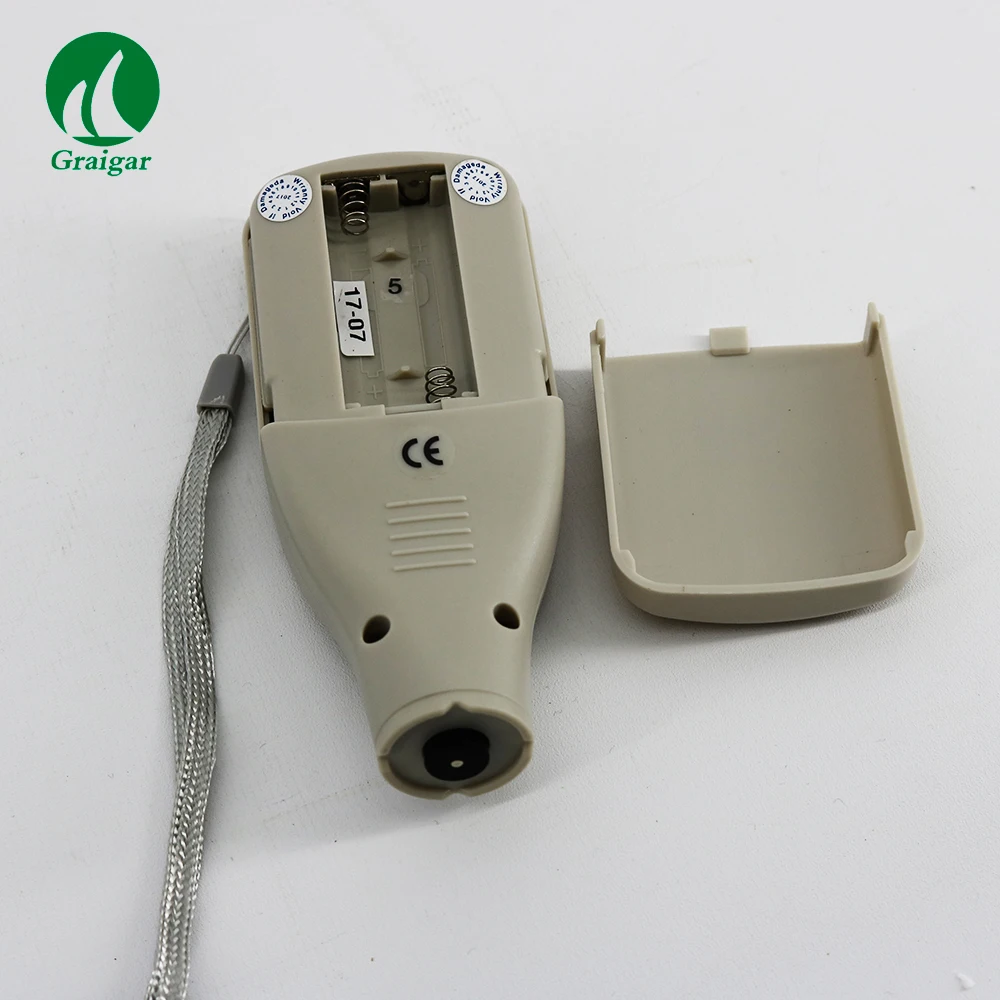

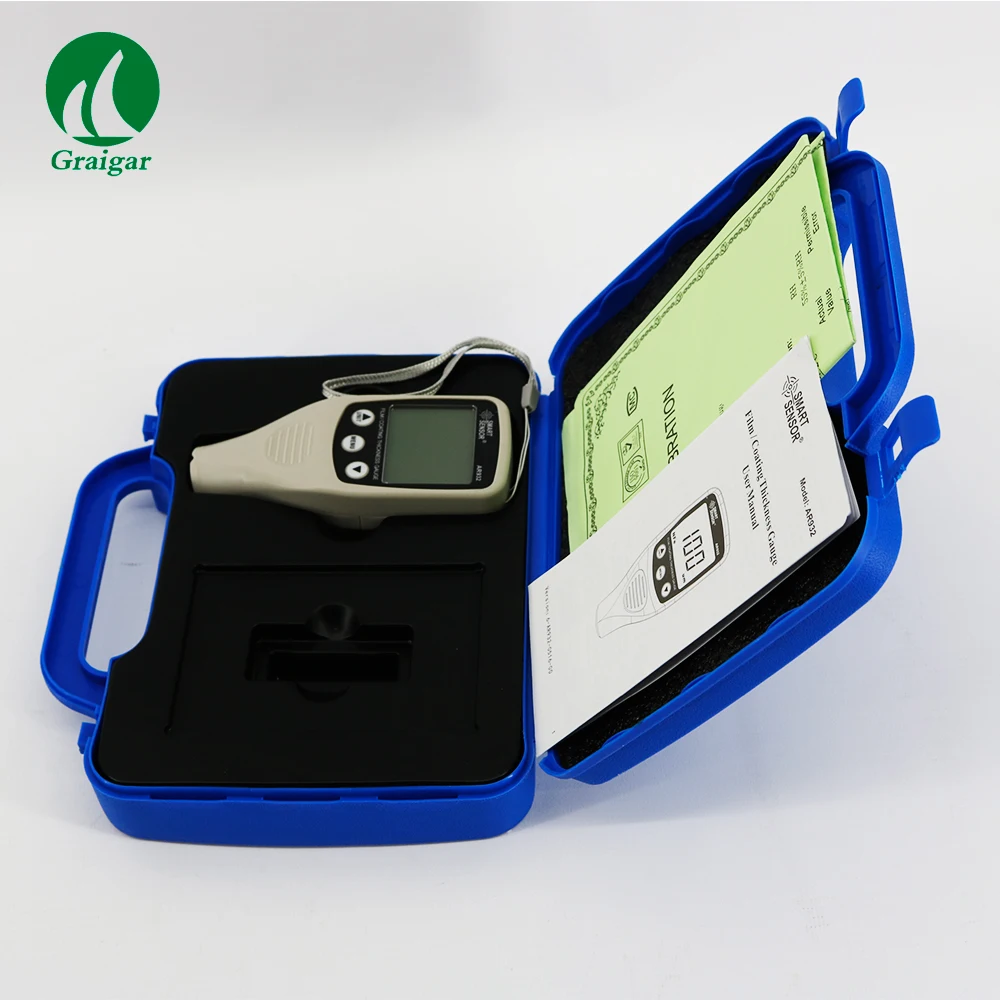

AR932(1).jpgAR932(2).jpgAR932(3).jpgAR932(4).jpgAR932(5).jpgAR932(6).jpgAR932(7).jpgAR932(8).jpgAR932(9).jpgAR932(10).jpgAR932(11).jpgAR932(12).jpg
