NS800 Professional Spectrophotometer Reflectance Spectrum Tester Color Analyser

FOB Reference Price:Get Latest Price
$2,000.00 - $2,500.00 / Piece | 1 Piece/Pieces (Min. Order)
Model Number:
NS800
Lead Time:
Quantity(Pieces) 1 - 3 >3
Est. Time(days) 5 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
3nh
Integrating sphere Size:
D58mm
Wavelength range:
400~700nm
Wavelength pitch:
10nm
Sensor:
Silicon photodiodearray
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Carton
Port
shenzhen
Lead Time :
Quantity(Pieces) 1 - 3 >3
Est. Time(days) 5 To be negotiated



Product Description

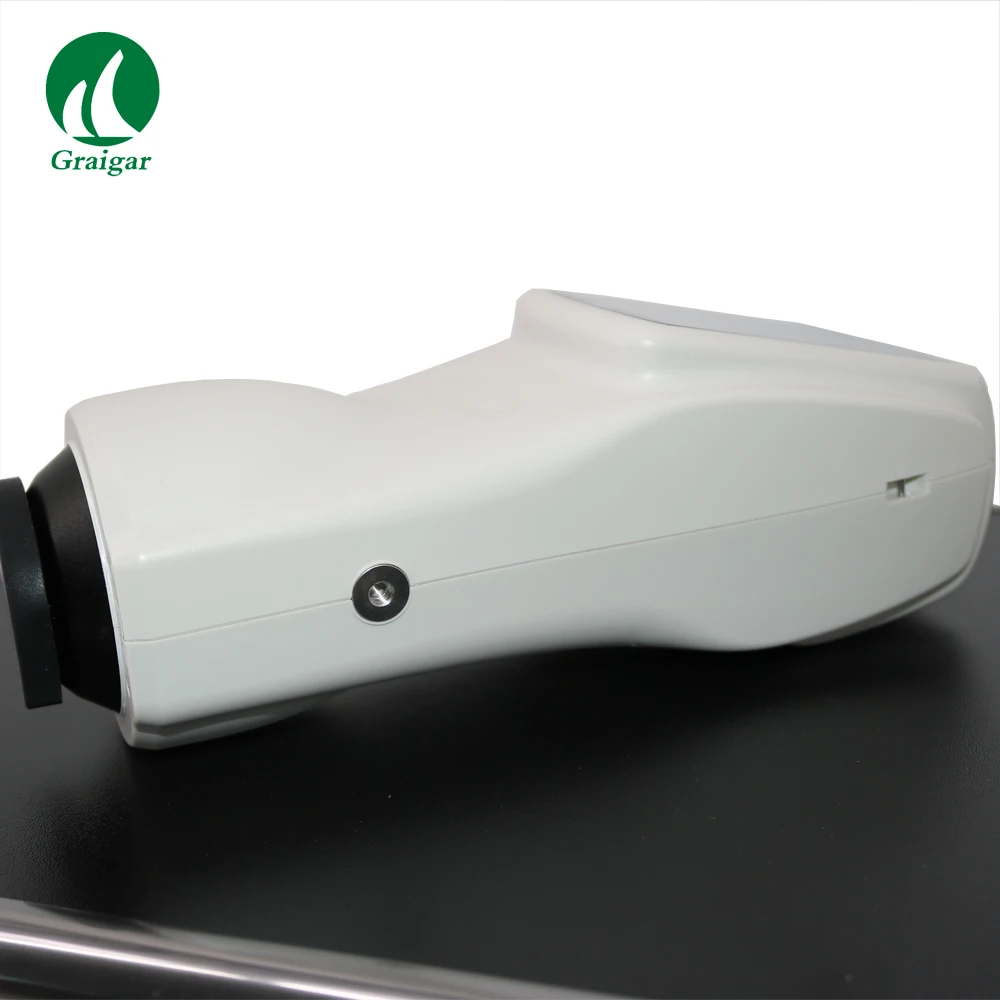

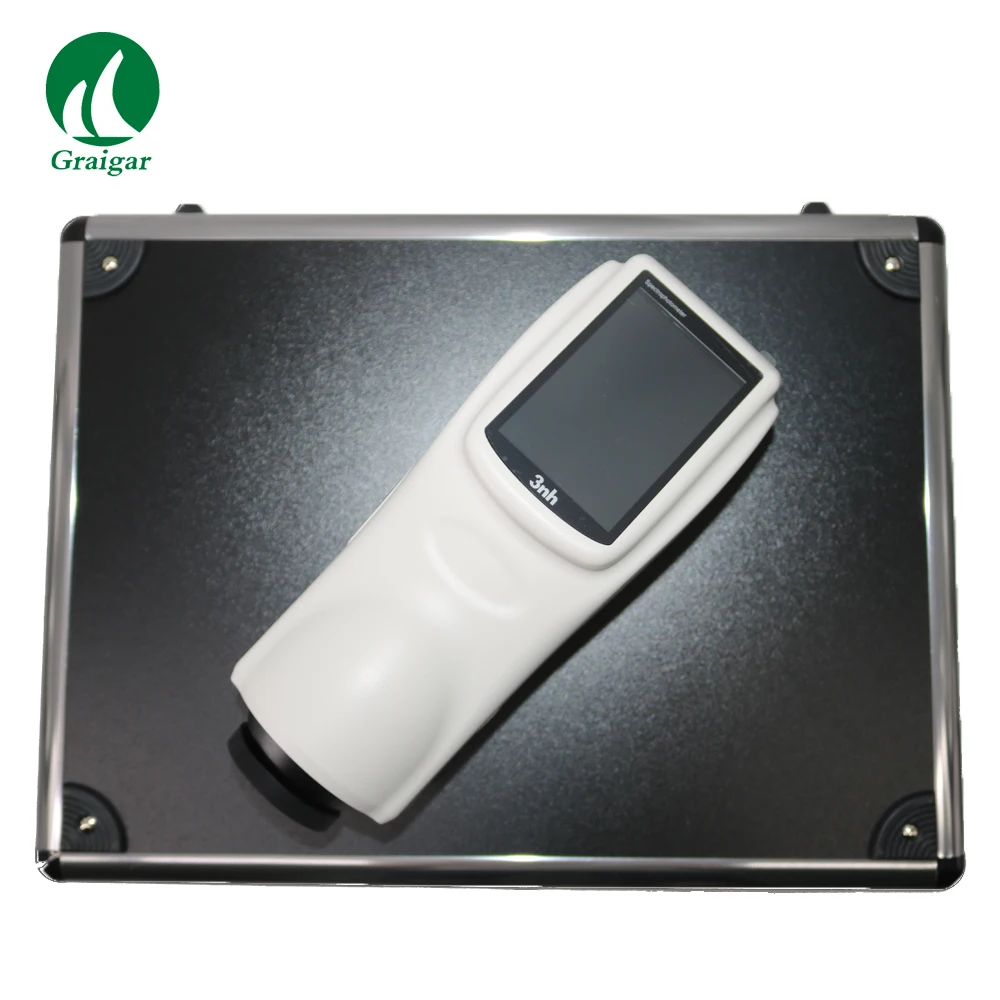

NS800 Professional Spectrophotometer Reflectance Spectrum Tester Color Analyser









NS800 spectrophotometer is widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, industries, scientific research institutes, schools and laboratories.  It can measure reflectance spectrum and other color index precisely. NS800 spectrophotometer not only can help to perform color matching and color management studies, but also can control product quality management accurately. The instrument is equipped with high-end color management software which can connect PC to achieve more extension functions.



Specifications



Model

NS800

Illumination/observation system

45/0 method (45 ring-shaped illumination, vertical viewing)
Comply with CIE No.15,GB/T 3978.

Integrating sphere Size

Diameter 58mm

Light Source

combined LED sources

Sensor

Silicon photodiodearray

Wavelength range

400~700nm

Wavelength pitch

10nm

Reflectance range

0~100%

Measuring Aperture

D8mm

Color Space

CIE LAB,XYZ,Yxy,LCh,CIE LUV

Color difference Formula

ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00
v

Other Chromaticity Data

WI(ASTM E313,CIE/ISO,AATCC,Hunter),
YI(ASTM D1925,ASTM 313),
TI(ASTM E313,CIE/ISO),
Metamerism Index (Mt)
Colour Stain, Color Fastness

Observer

2/10 Angel

Illuminant

D65,A,C,D50,D55,D75,F2,F6,F7,F8,F10,F11,F12

Display Data

Spectral Value/Graph, Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, Color Simulation

Measurement Time

1.5s

Repeatability

Spectral Reflectance: standard deviation within 0.1%(400~700nm: within 0.2%)
Colorimetric Value: Standard deviation within DeltaE*ab 0.04 (Measurement conditions: white calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.)

Inter Instrument Agreement

Within DeltaE*ab 0.2 (Average for 12 BCRA Series II color tiles)

Dimension

L*W*H=90*77*230mm

Weight

600g

Battery

Li-ion battery. 5000 times within 8 hours.

Lamp Life

5 years, more than 1.6 million measurements

Display Screen

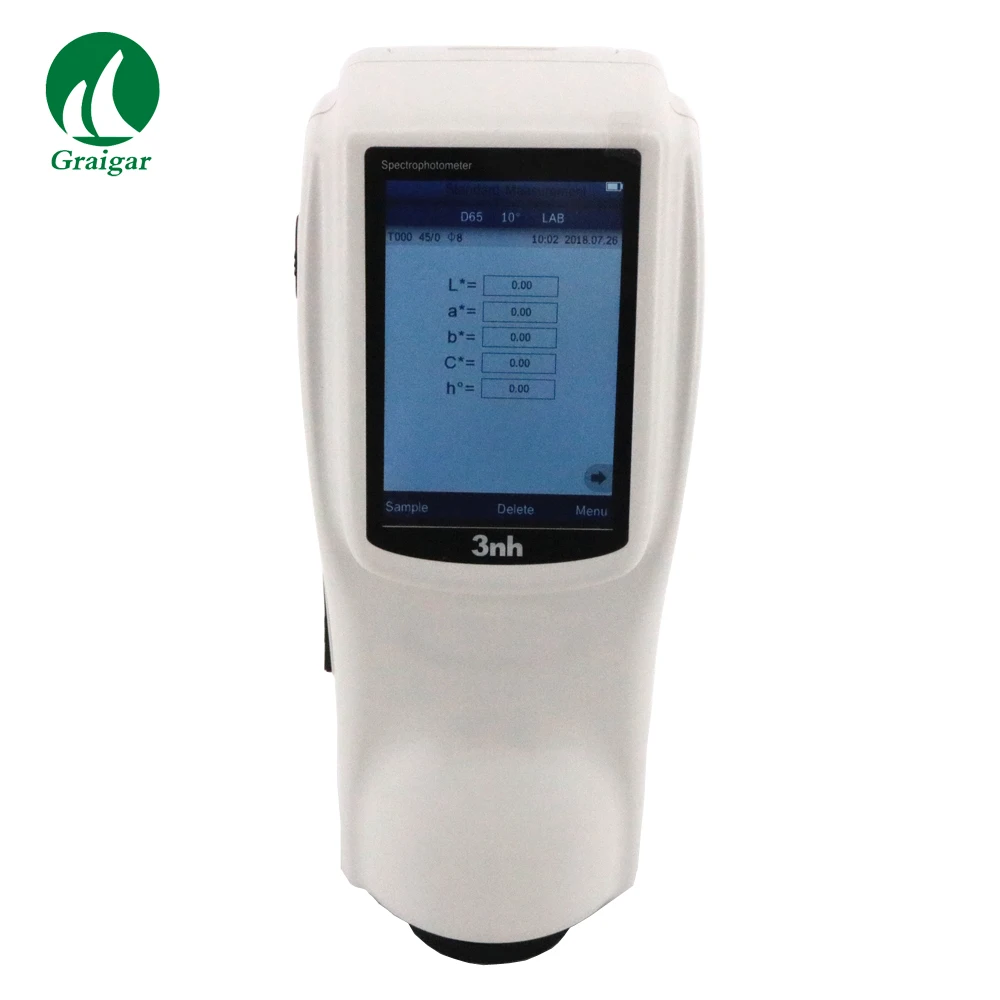

TFT 3.5inch, Capacitive Touch Screen

Interface

USB/RS-232

Data Memory

1000 Standards, 10000 Samples

Operating Temperature

0~40C(32~104F)

Storage temperature

 -20~50C(-4~122F)

Standard Accessory

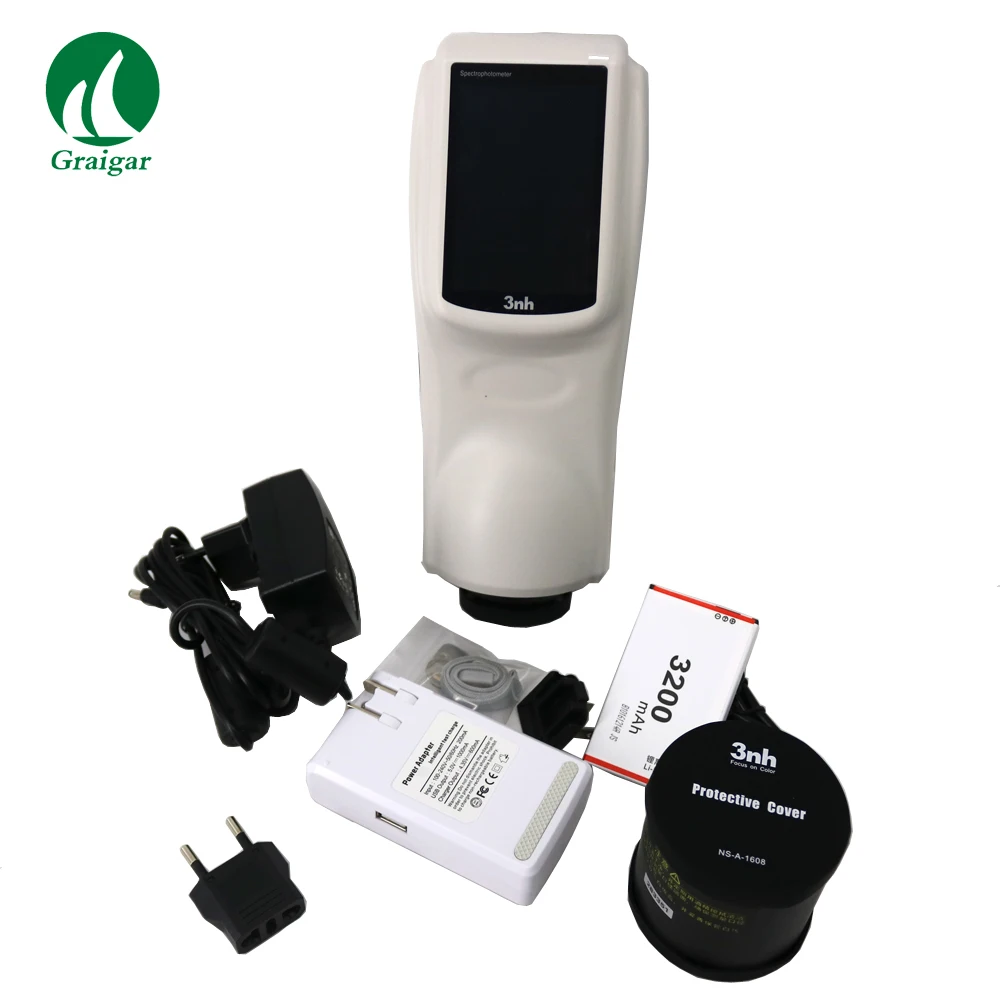

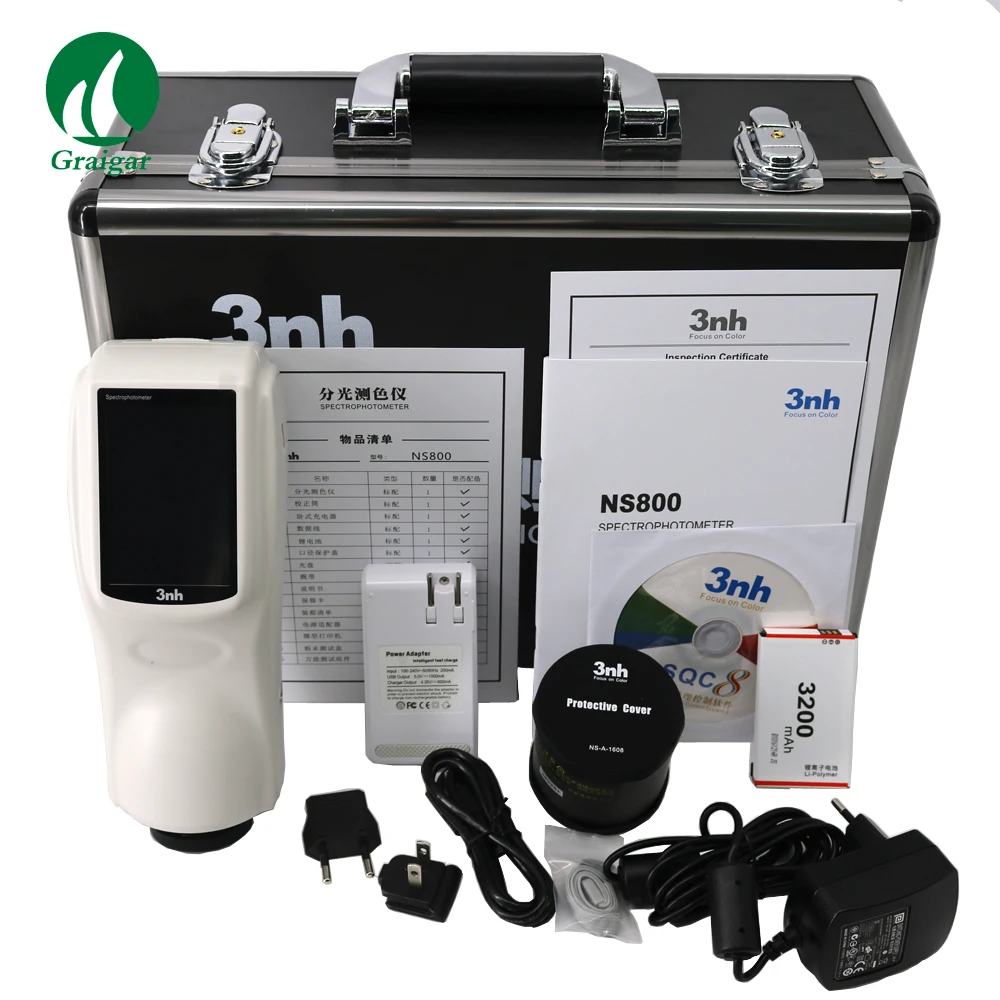

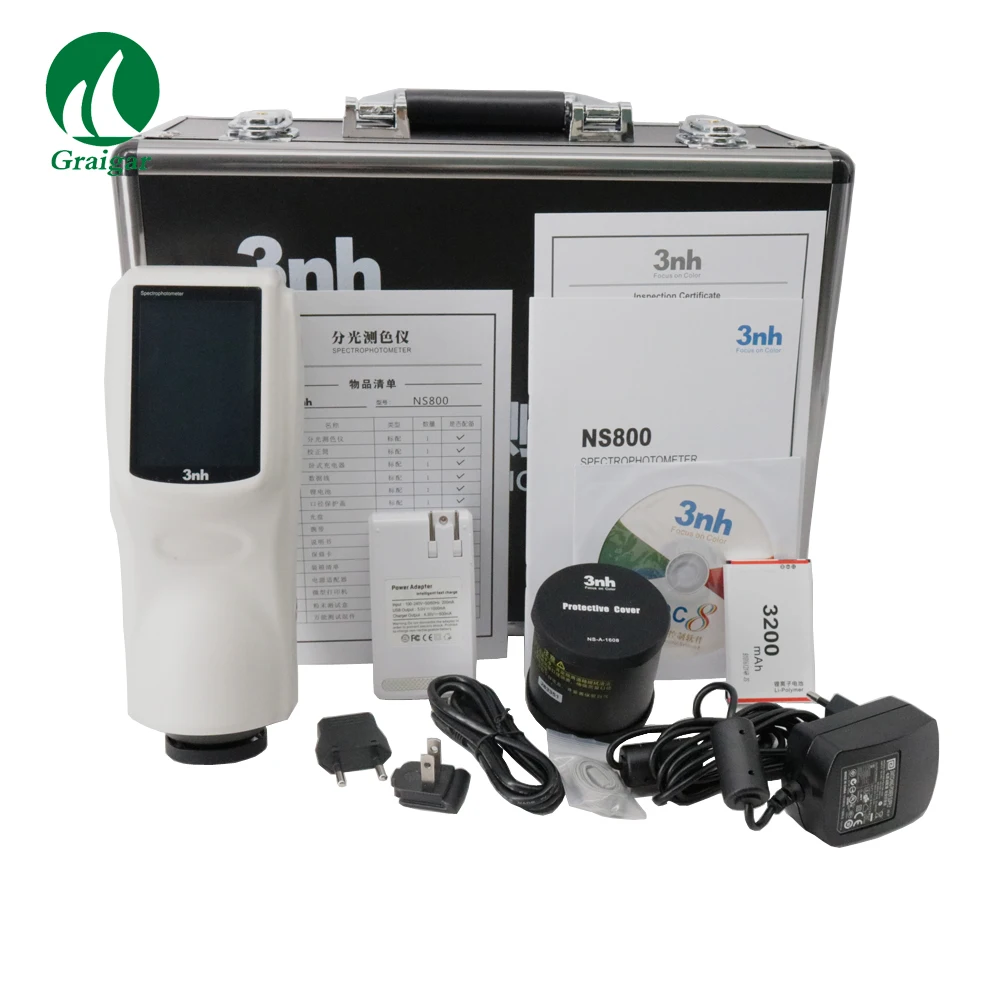

Power Adapter, Li-ion Battery, Operating Instruction, CD-ROM (containing management software), Data Line, White and Black Calibration Cavity, Protective Cover and Wrist Strap

Optional Accessory

Micro Printer, Powder Test Box

Notes

The specifications are subject to change without notice.
