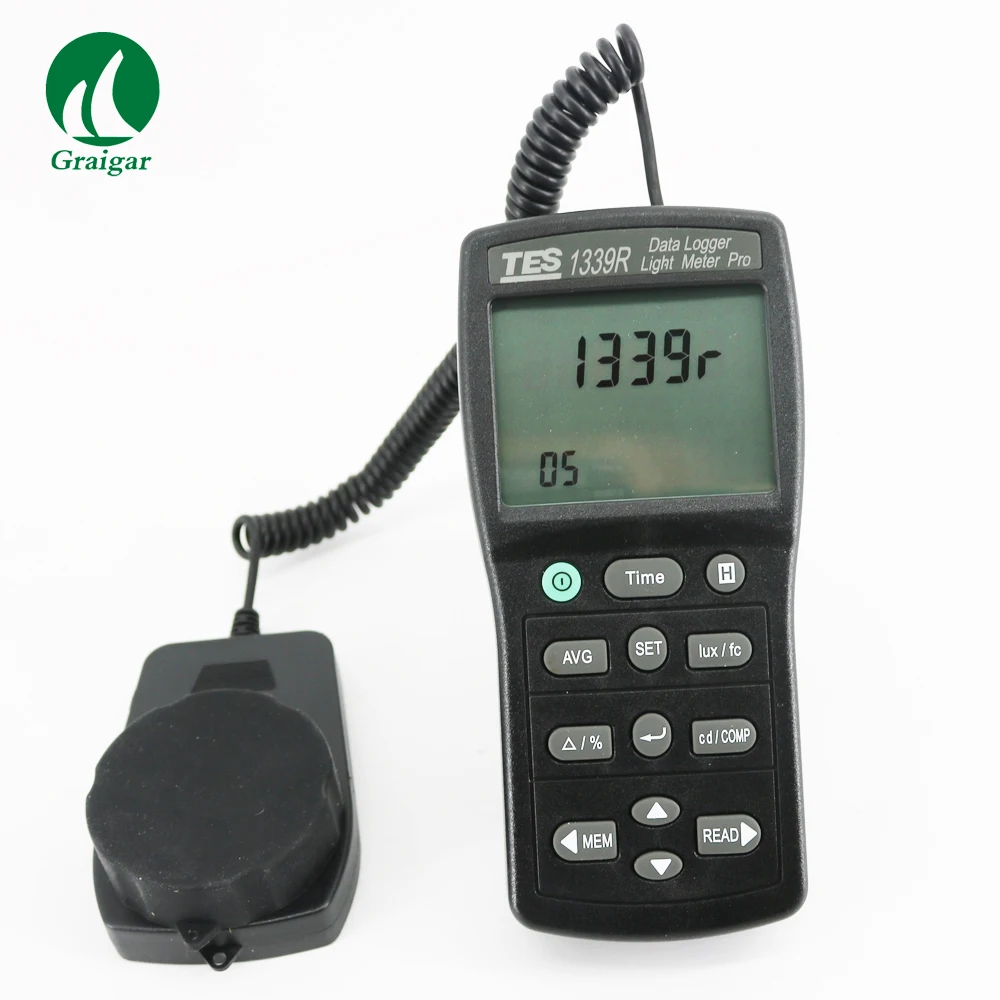

TES-1339R Datalogging Light Meter illuminometer Data Logger Light Meter Tester 0.01 to 999900 Lux PC Data Record

FOB Reference Price:Get Latest Price
$185.00 - $235.00 / Piece | 1 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Taiwan, China
Brand Name:
TES
Model Number:
TES-1339R
Resolving powerX:
0.01
measuring rangeX:
999900
AccuracyX:
+ 3%
type:
Digital illuminance meter
Supply Ability
Supply Ability:
999 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
standard export package
Port
Shenzhen
Lead Time :
with 3 working days after received payment


TES-1339R Datalogging Light Meter illuminometer Data Logger Light Meter Tester 0.01 to 999900 Lux PC Data Record



Features:

  • Dual Display, 4-digit LCD reading.
  • Spectral Sensitivity close to CIE photopic Curve.
  • Measuring Levels Ranging 0.01 to 999900 Lux,0.001 to 92927 fc, Autoranging 5 step.
  • Accurate and Instant response.
  • Integral illuminance measurement.
  • Luminous intensity measurement.
  • Data Hold function.
  • Data memory and read function.
  • Data logger function.
  • Reference value setting for relative or percentage deviation measurement.
  • Ripple measurement for STRAY + LIGHT function.
  • Time-hold function.
  • Point - average function.
  • Comparator function.
  • Auto power off function.
  • RS232 Interface.
  • CNS 5119 Class 2




Display

Dual display 4 digit LCD read out.

Measuring Range

99.99, 999.9, 9999, 99990, 999900 Lux
          9.292, 92.92, 929.2, 9292, 92927 fc
          Auto rangeing (5 step) (1 fc = 10.76 Lux)

Overrange Display

OL is displayed

Resolution

0.01 Lux, 0.001 fc

Accuracy

± 3% rdg ± 5dgt (Calibrated to standard    incandescent lamp, 2856° Κ )

CIE photopic f ' 1

< 6 %

Temperature Characteristics

± 0.1%/ C

Measuring Rate

Approximately 5 time/sec

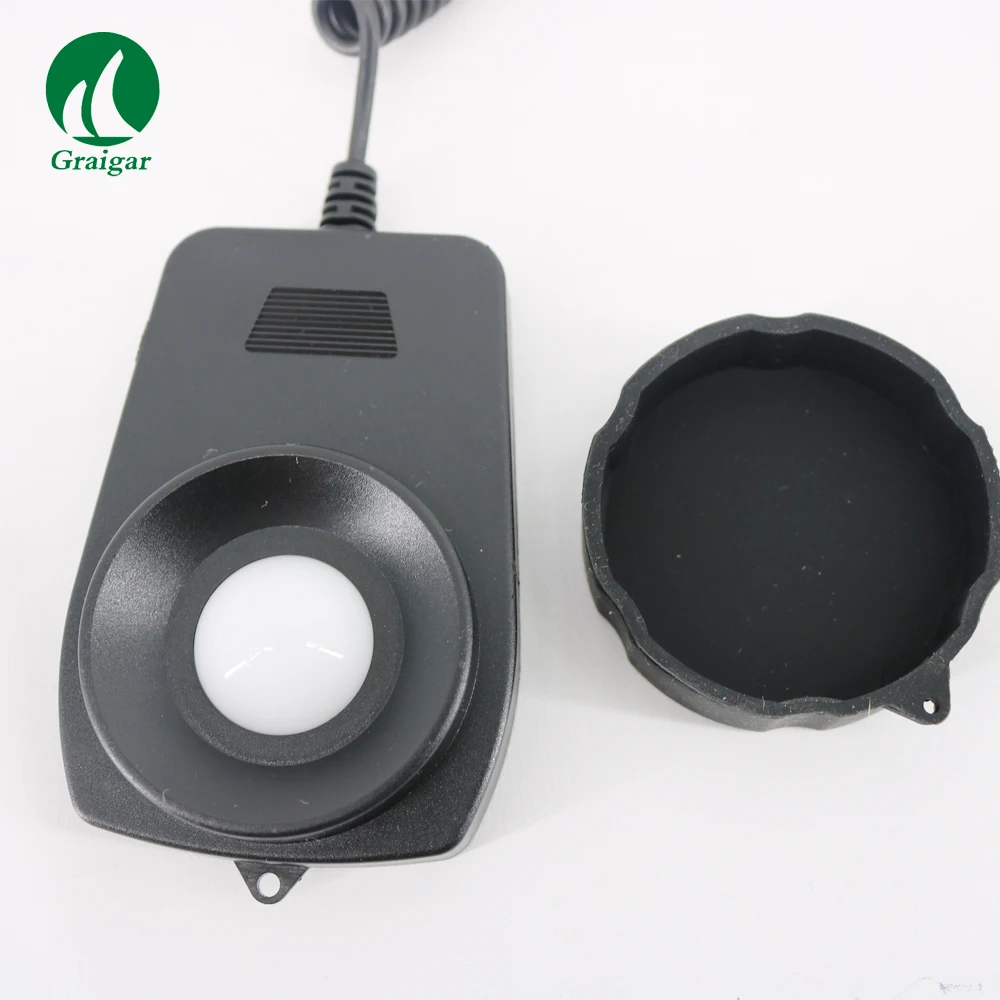

Photosensor

Silicon photodiodes

Data Memory Capacity

99 sets. (Direct reading from LCD    display)

Data Logger Capacity

40000 sets.

Operating / Storage Conditions

0 C ~ 50 C <80% RH
          -10 C ~ 60 C <70%RH

Power Source

6 pcs AAA size Battery

Battery Life (typical)

100 hours

Photosensor Lead Length

150 cm (approx.)

Photosensor Dimensions

92(L) × 60(W) × 29(H)mm

Dimension

150(L) × 72(W) × 35(H)mm

Weight

320g

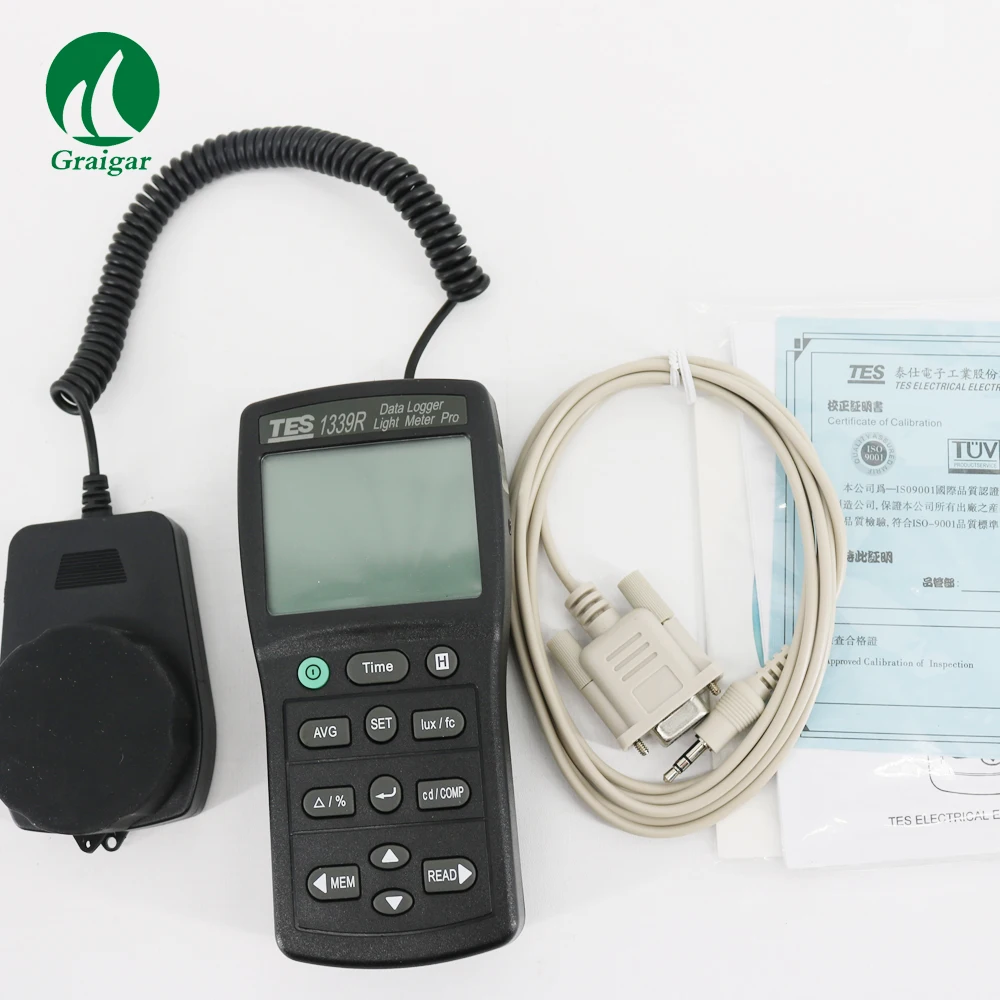

Accessories

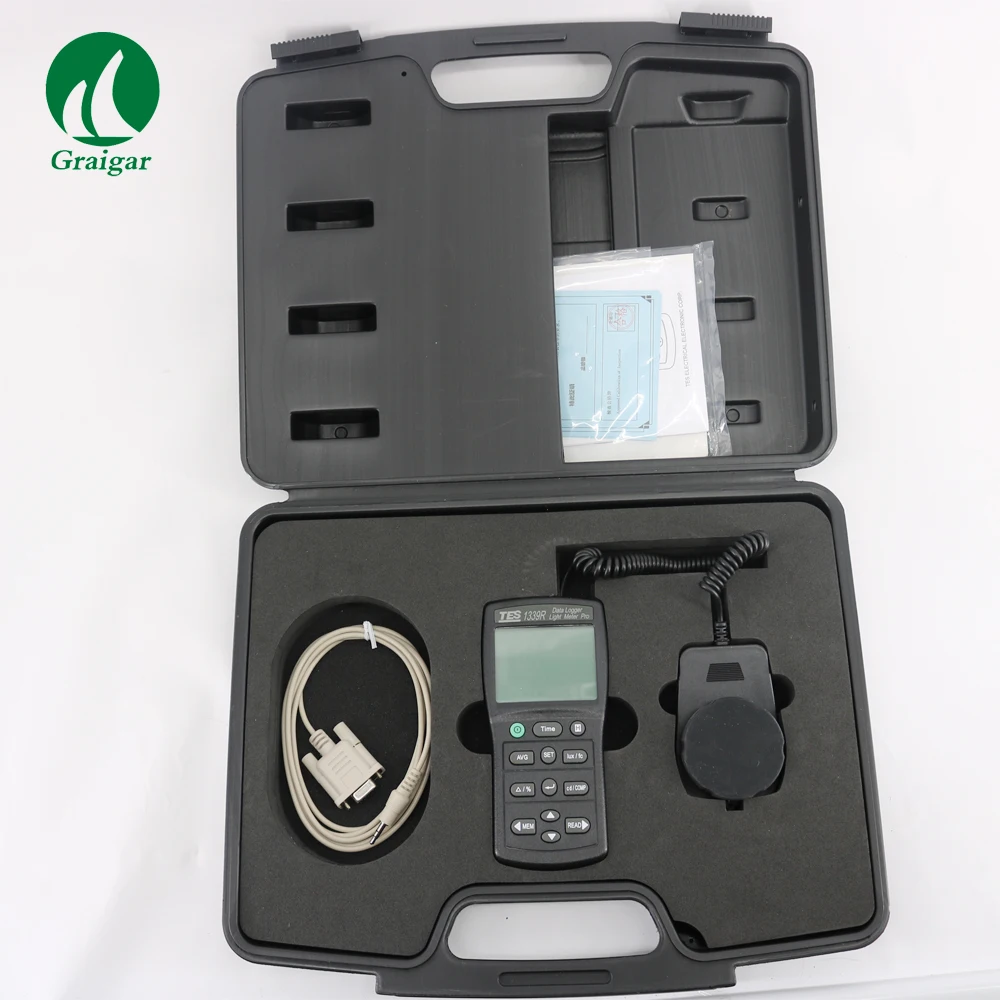

Carrying case, Instruction manual, CD    software,
          RS232 Cable.



TES-1339R (13).jpgTES-1339R (14).jpgTES-1339R (6).jpgTES-1339R (7).jpgTES-1339R (8).jpgTES-1339R (10).jpgTES-1339R (11).jpgTES-1339R (9).jpgTES-1339R (1).jpgTES-1339R (2).jpgTES-1339R (3).jpgTES-1339R (5).jpg
