Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: UNI-T
  • Model Number: UT71E
  • Dimensions: 200 x 93 x 40mm

Packaging & Delivery

Packaging Details: Gift Box
Delivery Detail: 3 days

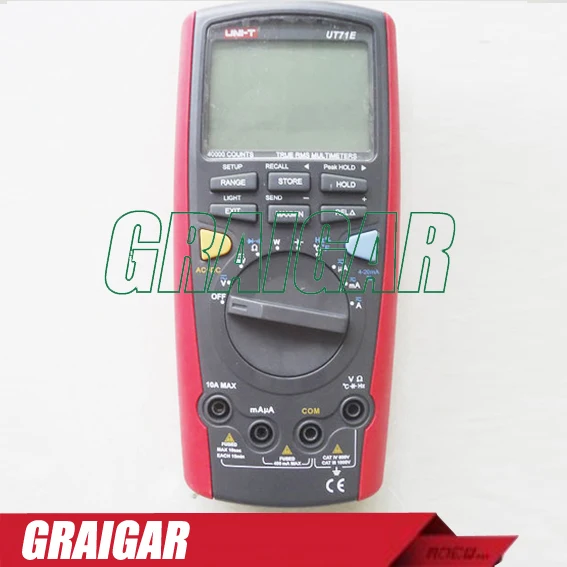

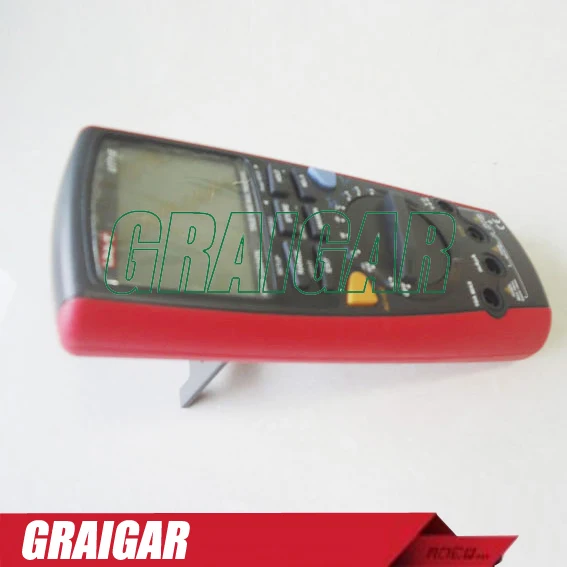

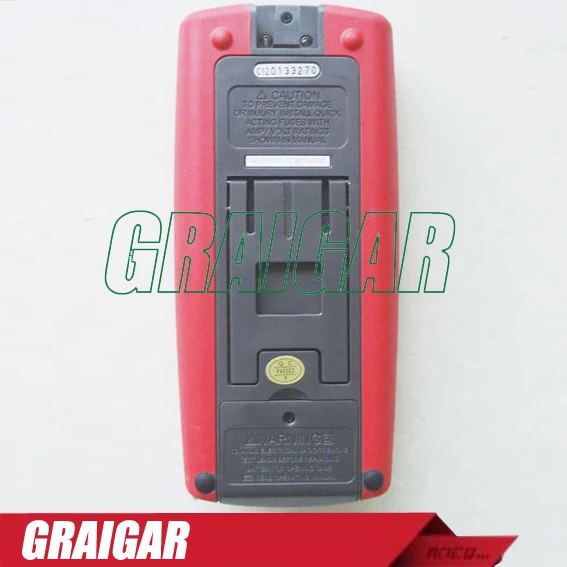

UNI-T UT71E Intelligent LCD Digital Multimeter With USB Interface Frequency Tester Meter





SPECIFICATIONS

Basic FunctionsRangeBest Accuracy
DC Voltage400mV/4V/40V/400V/1000V±(0.025%+5)
AC Voltage4V/40V/400V/1000V±(0.4%+30)
AC Bandwidth100KHz
DC Current400µA/4000µA/40mA/400mA/10A±(0.08%+8)
AC Current400µA/4000µA/40mA/400mA/10A±(0.5%+15)
Resistance400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ±(0.3%+8)
Capacitance40nF/400nF/4µF/40µF/400µF/4mF/40mF±(1%+20)
Temperature (°C)-40°C ~ 1000°C±(1%+30)
Temperature (°F)-40°F ~ 1832°F±(1.5%+50)
Frequency40Hz/400Hz/4kHz/40kHz/400kHz/4MHz/40MHz/400MHz±(0.01%+8)
Duty Cycle10%~90%±(1%+30)
4~20mA Loop0~100%

±(1%+50

Power Measurement ±(2%+5)
Special Functions
Fused 10A Range
Auto Ranging
Current Measurement Alarm
Function Set Up
Auto Ranging
Votage & Current :
AC + DC Measurement

Data Logging 100
Data Recall
Diode
Continuity Buzzer
True RMS
Peak Hold
Max/Min Mode
Relative Mode
Data Hold
USB
Double Display Backlight
Full Icon Display
Sleep Mode
Low Battery Display

Input Impedance for
DC Voltage Measurement

DC 200mV : Around 2.5GΩ
All Other Ranges : 10MΩ
Max. Display40000
Analogue Bar Graph

GENERAL CHARACTERISTICS

Power9V Battery (6F22)
LCD Size73 x 50 mm
Product ColourRed and Grey
Product Net Weight384g
Product Size200 x 93 x 40mm

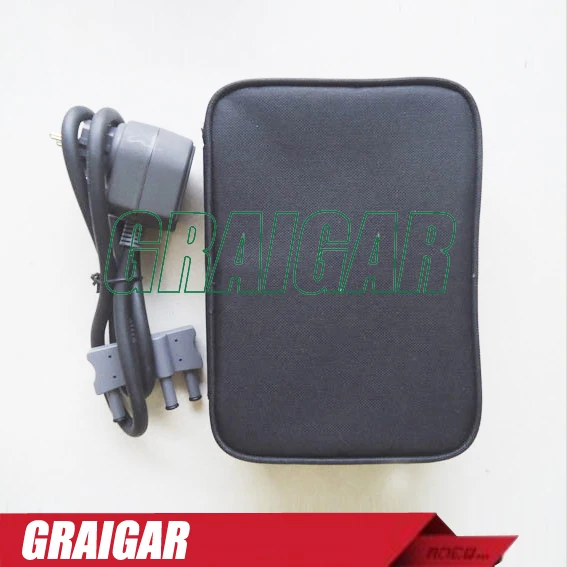

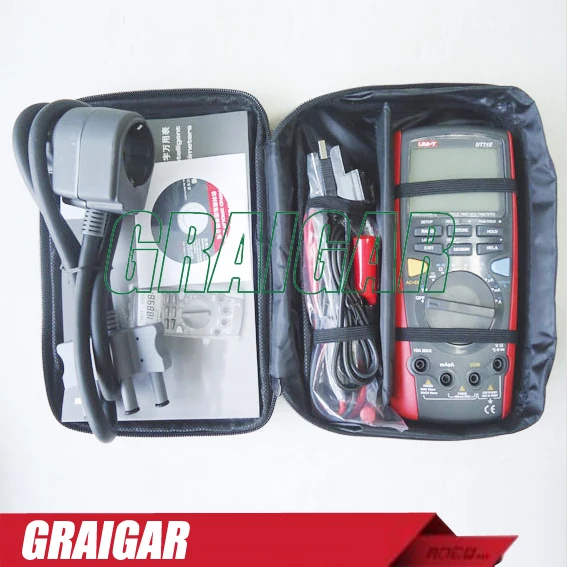

Standard AccessoriesTest Lead, English Manual, Battery, Alligator Clip, USB Interface Cable,
Software, Point Contact Temperature, Probe, Carrying Bag, Test Clip
Standard Individual PackingGift Box
Standard Quantity Per Carton20 pcs
Standard Carton Measurement

542 x 376 x 388mm
(0.079 CBM Per Standard Carton)

Standard Carton Gross Weight18kg
